Dedicated Delegate on Target Cluster

This topic describes the permissions required to deploy Delegate for each target cluster to execute chaos experiments.

Before you begin, review the following:​

Why service accounts matter​

A service account is required in the Delegate YAML when Delegate is installed in the target cluster to execute chaos experiments, because Delegate has to assume a role to execute chaos experiments.

In case the Delegate is deployed in a centralized infrastructure (and connected to the target cluster), service account is not required in the Delegate YAML because the Kubernetes connectors already have the role permissions, and Delegate only orchestrates the tasks.

The diagram below describes the interaction between Harness environment and your (user) environment when using a dedicated Delegate on a target cluster. It is important to note that Harness Delegate is installed in the target cluster where chaos experiment is executed.

Limit Permissions for Delegate​

By default, Delegate uses the cluster admin role. To limit the permissions for the Delegate, follow the steps below.

Step 1. Create a dedicated namespace​

Create a dedicated namespace for Harness delegate during installation. For example harness-delegate-ng.

Step 2. Remove Cluster Role Binding​

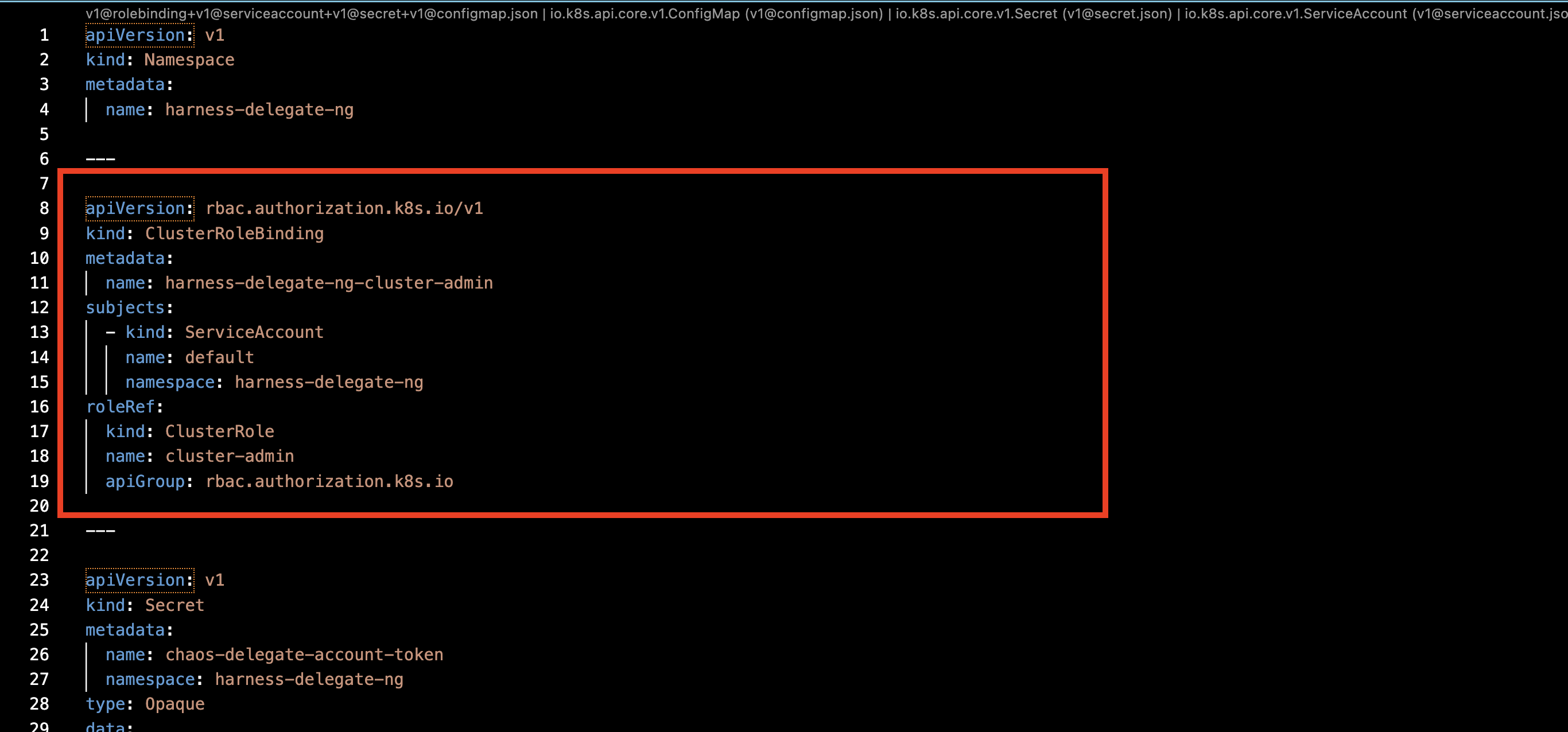

Remove the cluster role binding from the Delegate manifest, as shown in the diagram.

Step 3. Create New Service Account​

Create a new service account for the Delegate (to which you can assign a role further) in the dedicated namespace where the Delegate is installed. Here, chaos-delegate refers to the name of the service account in the Delegate.

apiVersion: v1
kind: ServiceAccount
metadata:
  name: chaos-delegate
  namespace: harness-delegate-ng

Step 4. Attach the Service Account​

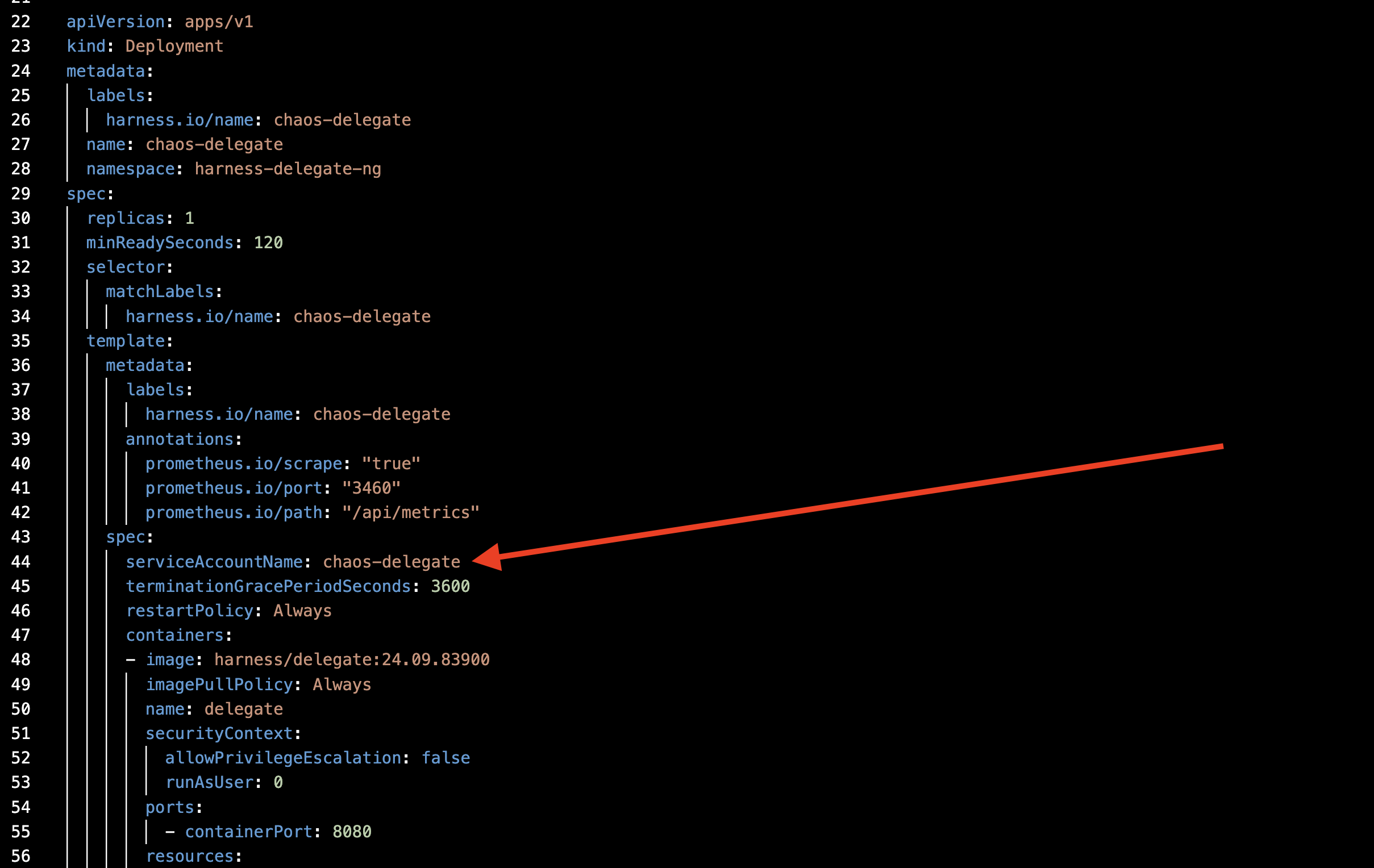

Attach the service account you created earlier to the Delegate YAML, as shown in the diagram.

Step 5. Apply RBAC​

Apply the below RBAC to configure the permissions to create chaos runners (that is, transient pods).

apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  namespace: harness-delegate-ng
  name: chaos-runner-role
rules:
- apiGroups:
  - apps
  resources:
  - deployments
  - replicasets
  - daemonsets
  - statefulsets
  verbs:
  - create
  - delete
  - get
  - list
  - patch
  - update
  - watch
  - deletecollection
- apiGroups:
  - ""
  resources:
  - pods
  - pods/log
  - pods/exec
  - secrets
  - services
  - configmaps
  verbs:
  - create
  - delete
  - get
  - list
  - patch
  - update
  - watch
  - deletecollection
- apiGroups:
  - batch
  resources:
  - jobs
  - cronjobs
  verbs:
  - create
  - delete
  - get
  - list
  - patch
  - update
  - watch
  - deletecollection
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  name: chaos-runner-rolebinding
  namespace: harness-delegate-ng
subjects:
- kind: ServiceAccount
  name: chaos-delegate
  namespace: harness-delegate-ng
roleRef:
  kind: Role
  name: chaos-runner-role
  apiGroup: rbac.authorization.k8s.io

Step 6. Create a Cluster Role​

Create a cluster role that will be used later to onboard application namespaces.

apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: chaos-clusterrole
rules:
# Discovery permissions
- apiGroups:
  - apps
  resources:
  - deployments
  - replicasets
  - daemonsets
  - statefulsets
  verbs:
  - watch
  - list
  - get
- apiGroups:
  - ""
  resources:
  - pods
  - replicationcontrollers
  - services
  - statefulsets
  - nodes
  - namespaces     #(nodes and namespace permissions are required to autocreate network experiments)
  verbs:
  - watch
  - list
  - get
- apiGroups:
  - batch
  resources:
  - jobs
  - cronjobs
  verbs:
  - watch
  - list
  - get
# Chaos permissions
- apiGroups:
  - ""
  resources:
  - pods
  verbs:
  - create
  - delete
  - get
  - list
  - patch
  - update
  - watch
  - deletecollection
- apiGroups:
  - networking.k8s.io
  resources:
  - networkpolicies
  verbs:
  - create
  - delete
  - get
  - list
- apiGroups:    #(Prerequisite: Metrics server should be installed on the cluster. This is required if your are running a custom script in command (CMD) source probe to get CPU and memory metrics for pods and nodes.)
  - metrics.k8s.io
  resources:
  - pods
  - nodes
  verbs:
  - get
  - list
- apiGroups:
  - apps
  resources:
  - deployments
  - replicasets
  - daemonsets
  - statefulsets
  verbs:
  - list
  - get
  - update
- apiGroups:
  - ""
  resources:
  - replicationcontrollers
  - services
  verbs:
  - get
  - list
- apiGroups:
  - apps.openshift.io
  resources:
  - deploymentconfigs
  verbs:
  - list
  - get
- apiGroups:
  - argoproj.io
  resources:
  - rollouts
  verbs:
  - list
  - get

Step 7. Create Cluster Role Binding (Optional)​

If you wish to provide access to all namespaces, create a cluster role binding.

apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: chaos-rolebinding
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: chaos-clusterrole
subjects:
- kind: ServiceAccount
  name: chaos-delegate
  namespace: harness-delegate-ng

  • Now, you can onboard a namespace by creating a role binding in the application namespace (For example, Onboarding app1, app2 and so on)

    apiVersion: rbac.authorization.k8s.io/v1
    kind: RoleBinding
    metadata:
      name: chaos-rolebinding
      namespace: app1 #for app2, provide namespace as app2
    roleRef:
      apiGroup: rbac.authorization.k8s.io
      kind: ClusterRole
      name: chaos-clusterrole
    subjects:
    - kind: ServiceAccount
      name: chaos-delegate
      namespace: harness-delegate-ng

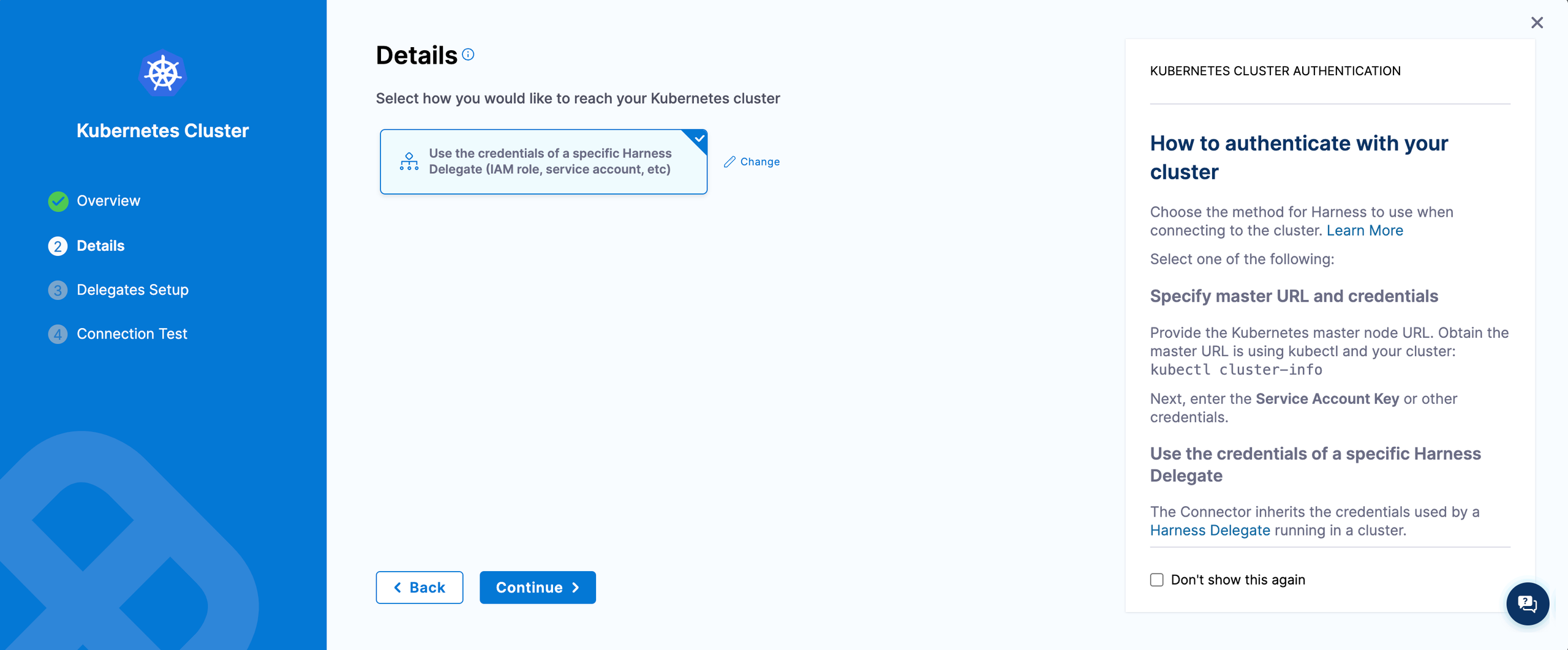

Step 8. Create a Kubernetes connector​

Create a Kubernetes connector using Delegate permissions.

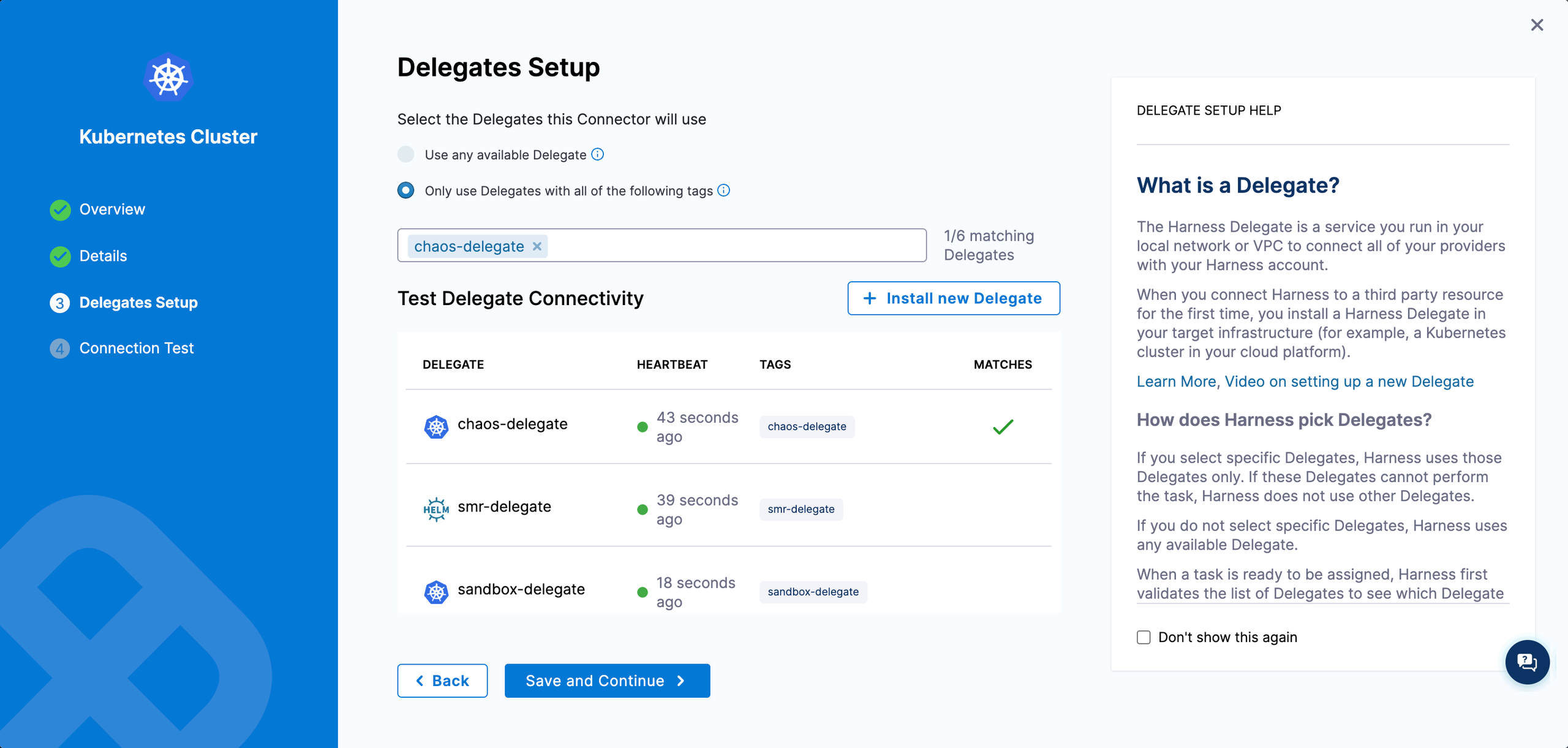

connector delegate setup

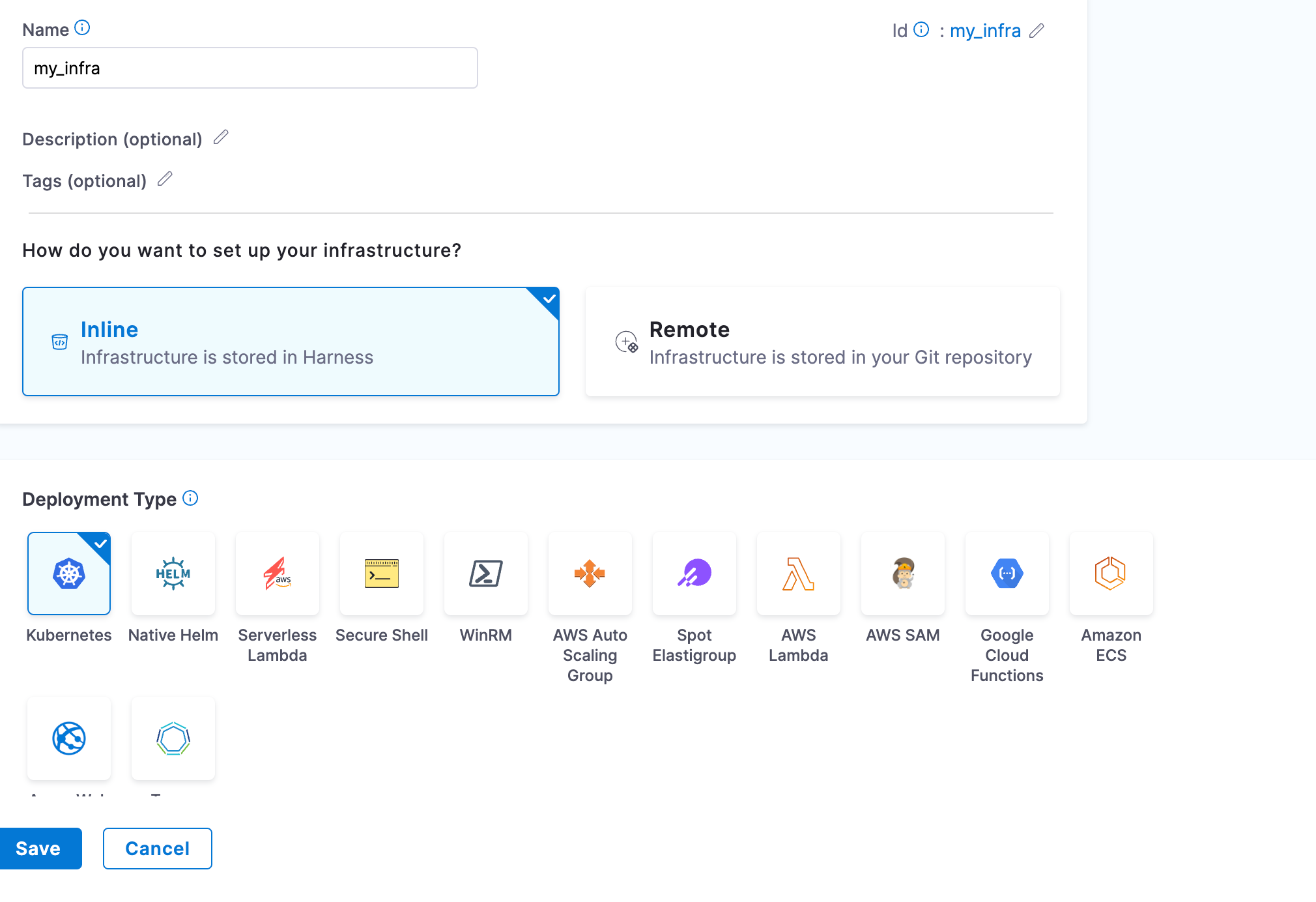

Step 9. Create Kubernetes Infrastructure​

Finally create the Kubernetes infrastructure using the Kubernetes connectors created in the step 8.

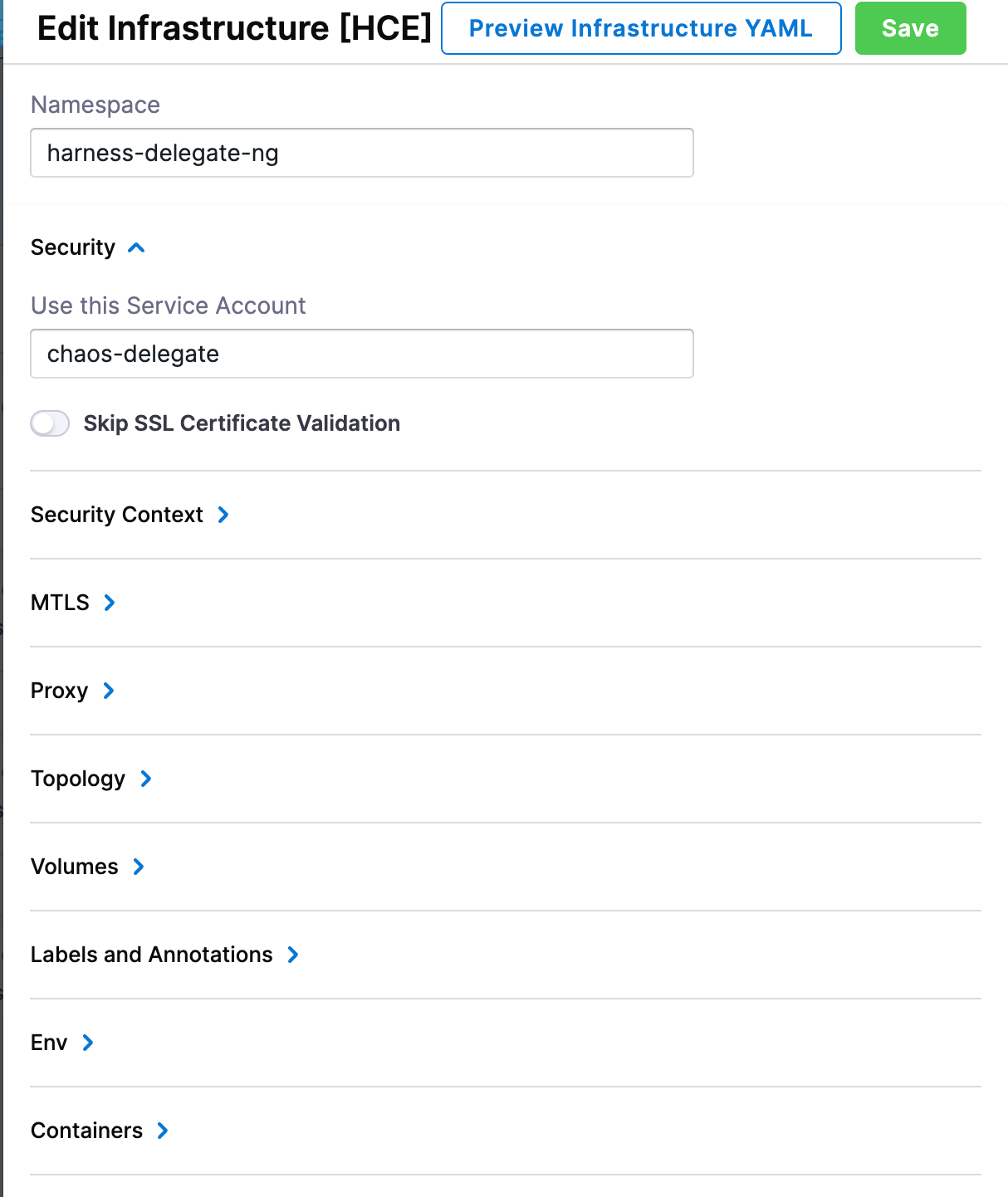

Step 10. Edit Infrastructure​

Edit the infrastructure you created in step 9 to provide the details of dedicated namespace that was created earlier. This is the namespace where the chaos runner will be launched along with the Service Account to ensure that experiments run with relevant permissions.
